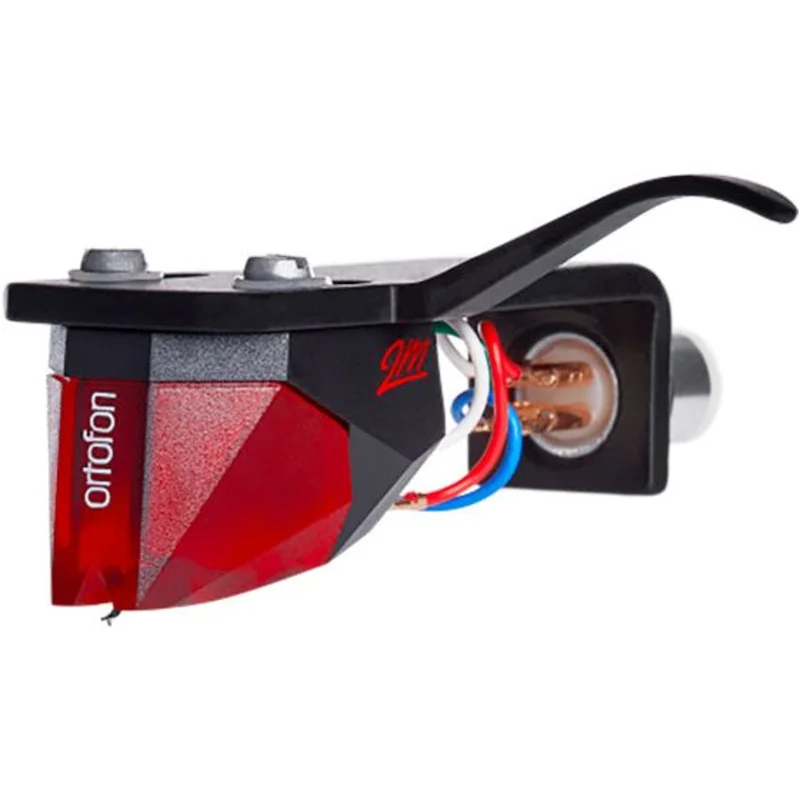

Ortofon – 2M Red MM Cartridge Mounted on SH-4 Black Headshell

Description

2M Red Premounted

With the 2M Red Premounted, you will hear the music come to life on its own terms. It is like taking a step into music itself. This is our entry-level cartridge in the series, but what an entry.

Taking a step into music itself

Accuracy level

With the 2M Red Premounted, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-levelcartridge in the series, but what an entry.The 2M Red delivers an open, dynamic sound with a slight touch of warmth..

It’s never been easier to experience

Compatibility

Experience the convenience of the 2M Red Premounted a smart and refined choice for those seeking straightforward installation and effortless replacement on their S-shaped tonearm. The SH-4 headshell’s resilience and stability are enhanced by its slender and refined design. A robust yet lightweight construction, coupled with an ergonomic, extended finger lift, ensures easy handling and pickup.

Split pole pin technology

Features

The 2M Red features Ortofons very own invention: the split pole pins with a copper wire that gives you a sound reproduction so precise only your heart dares skip a beat.

Theengineprovides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy. With the 2M Red, you will hear the music come to life on its own terms. It is like taking a step into the music itself. This is our entry-level cartridge in the series, but what an entry.

Specifications

• Channel balance at 1 kHz1.5 dB
• Output voltage at 1 kHz, 5cm/sec5.5 mV
• Channel seperation at 1 kHz22 dB
• Channel seperation at 15 kHz15 dB
• Frequency response 20 Hz – 20 kHz3 / – 1 dB
• Tracking ability at 315Hz at recommended tracking force70 m
• Compliance, dynamic, lateral20 m/mN
• Stylus typeElliptical
• Stylus tip radiusr/R 8/18 m
• Tracking force range1.6-2.0 g (16-20 mN)
• Tracking force, recommended1.8 g (18 mN)
• Tracking angle20
• Internal impedance, DC resistance1.3 kOhm
• Cartridge colourBlack/Red
• Cartridge weight7.2 g
• Premounted cartridge weight16.7 g
• Recommended load resistance47 kOhm
• Internal inductance700 mH
• Recommended load capacitance150-300 pF
